Warehouse Order Picking Trolleys

Warehouse Order Picking Trolleys

What are the warehouse order picking trolleys?

Warehouse order picking trolleys help streamline operations and reduce physical strain on workers. Made from Q235 mild steel, these trolleys are highly durable and eco-friendly. The shelves include dividers to separate products, keeping items intact during handling. The 360° rotating directional caster makes turning easier in tight warehouse spaces. A braking system on the wheels ensures safety when the trolley is parked. These trolleys are commonly used in large warehouses, retail distribution centers, and third-party logistics to improve picking speed and reduce labor fatigue.

Model No.: YST - PT003
Loading Capacity: 500 kg
Load in 1x40'HQ: 250 sets
Ext. Dim. (L×W×H): 1057 × 625 × 1345 (mm)

Send Inquiry
Description
Technical Parameters

Video



YST Logistics Equipment's factory show

How to assemble the warehouse order picking trolleys





Products Parameter



Parameter-PT003



Common applications

picking trolley warehouse

In Warehouse

picking trolley post office

In Post Office

picking trolley supermarket

In Supermarket

picking trolley distribution

In Distribution



Similar Products

PT001

YST-PT001

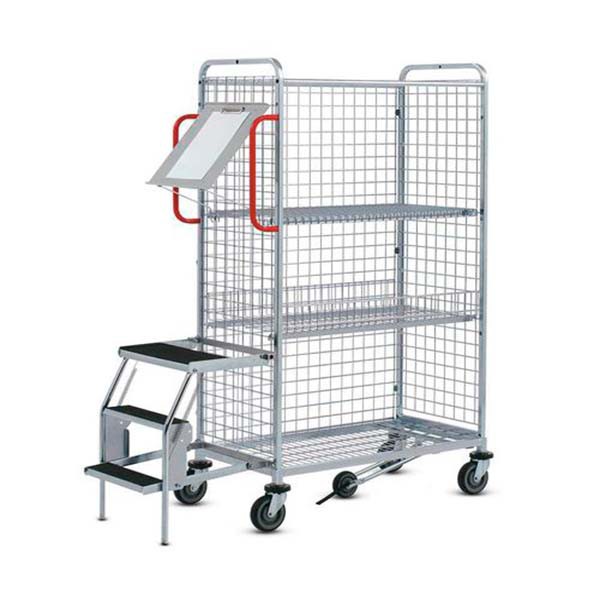

PT002

YST-PT002

PT004

YST-PT004

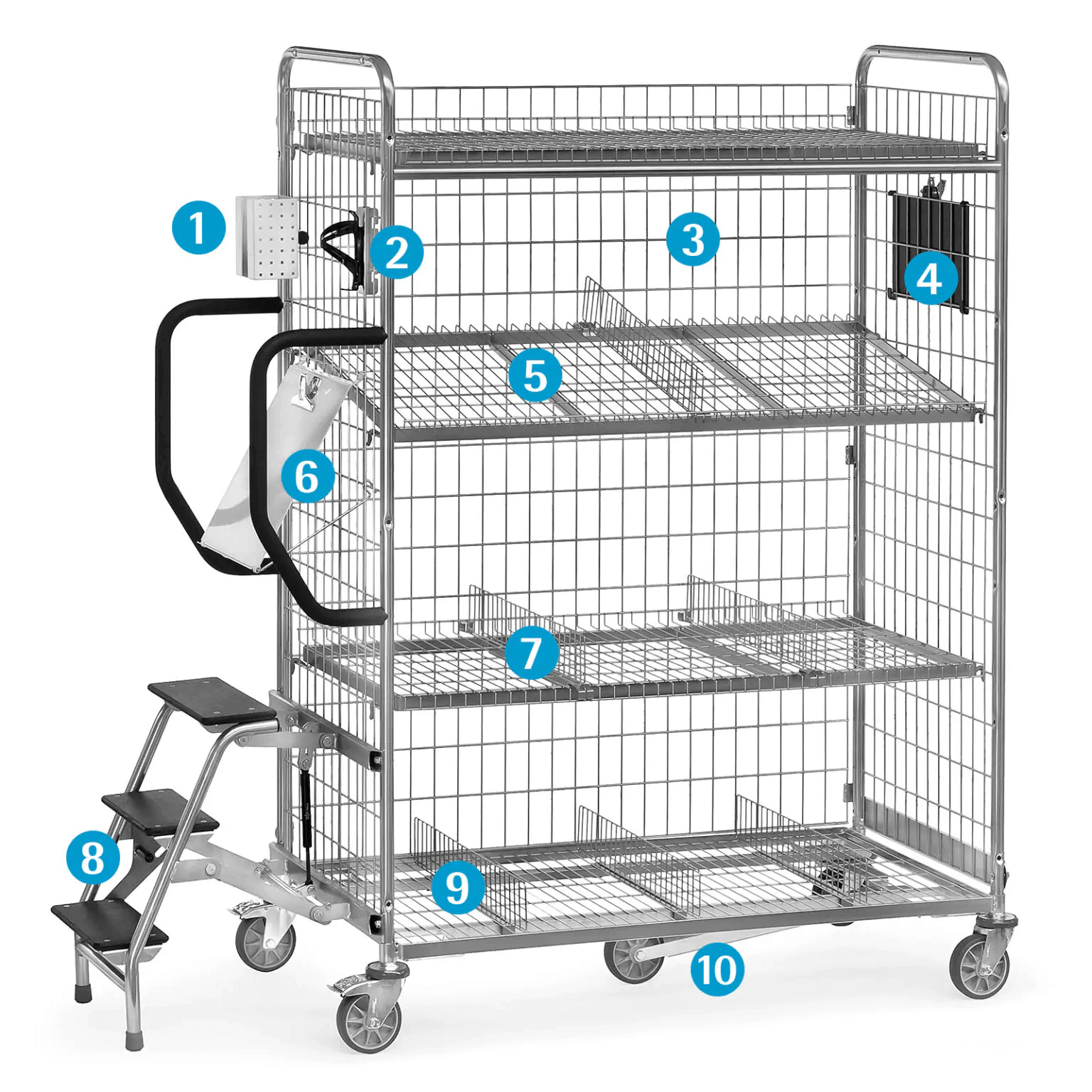

Options



options (1).png
options name

Castors Type

Castors Type

A: Caster set with 4 swivel casters (standard).

B: Caster set with 2 brakes.

C: Caster set with 2 swivel and 2 fixed casters.

Shelf Type

D: Wire shelf with 25 mm / 1 inch upstand on both sides.
Mesh size 100 x 30 mm / 3.9 x 1.2 inches



E: The solid shelf is screwed in at the upper end between both side panels.

Shelf Type

Type

Special Type

F: Forklift guides: For effortless transport with most forklift models.



G: Bracket: The swivel casters are locked simultaneously using a foot bracket.



Features



Save Time

By reducing the need for manual handling, minimizing the number of trips required, and improving organization and accessibility, they help save time and labor.



Improve Efficiency at Work

The picking trolleys can speed up sorting, loading and handling, saving about 35 minutes on a single transport line, reducing manual operation time and costs, and improving work efficiency.



Easy to Move

Usually equipped with two fixed and two swivel casters, the trolley can be easily maneuvered, even with a heavy load, through aisles, doorways, and narrow spaces.



Improve Safety for Workers

Manual handling of goods is prone to injuries, such as strains. Using order picking trolleys to deliver goods can reduce the number of times workers lift and move heavy objects, thereby reducing injuries.

before after-picking troley

Why Choose YST



QC-picking trolley



why choose us-picking trolley 1

FAQ



Q: Are there any charges for samples?
A: Samples are charged, it is imperative to note that we only charge for the labor costs and not for profit. Upon confirmation of your order(The order contains at least 1*40HQ), we will return the sample cost. We guarantee the quality of our samples and will provide progress updates through photos and videos for your review. If you have any specific requests during the sample preparation, please do not hesitate to contact us.



Q: Do you have order picking trolleys in stock?
A: We don't have trolleys in stock usually. But if you purchase the standard model, the roll containers will be manufactured in a shorter time.



Q: Can the deposit be free, payment monthly?
A: No, we need depost for arrange production.



Q: Can we pay by LC/DP?
A: Our payment term is TT or 100% L/C at sight only terms, you could choose which you prefer to.
